Guide Type Scraper

Slickline wireline guide type scraper isused to gauge the tubing and to remove the scale,paraffin wax and debris etc.,as well as ensuring the unhindered passage of subsequent bottom bole assembly.This unique style of cutter has no hard edges and the protection cage helps in guiding
Products Inquiry

PRODUCT INFORMATION

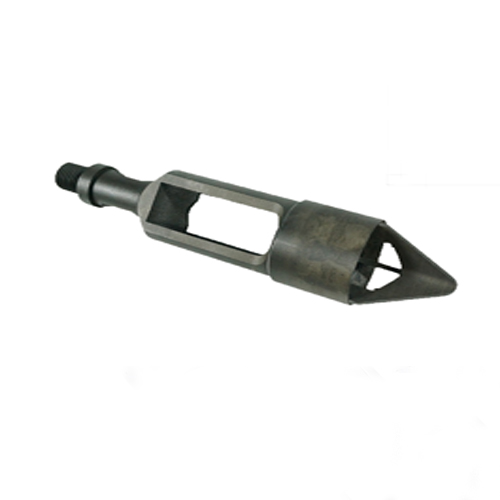

Slickline wireline guide type scraper is used to gauge the tubing and to remove the scale, paraffin wax and debris etc., as well as ensuring the unhindered passage of subsequent bottom bole assembly.

This unique style of cutter has no hard edges and the protection cage helps in guiding the cutter as well as preventing damage to the cutting edge. Circulation can be achieved through the tool to remove debris during the operation.


Technical Specifications

Tools O.D.

Fishing Neck

Connection

1.25"-1.5"

1.187"

15/16-10UN

1.5"-2"

1.375"

15/16-10UN

2"-2.5"

1.375"

15/16-10UN

2.5"-3"

1.75"

1-1/16-10UN

3"-4"

1.75"

1-1/16-10UN

4"-5"

2.313"

1-9/16-10UN

*Other sizes are available upon request.
