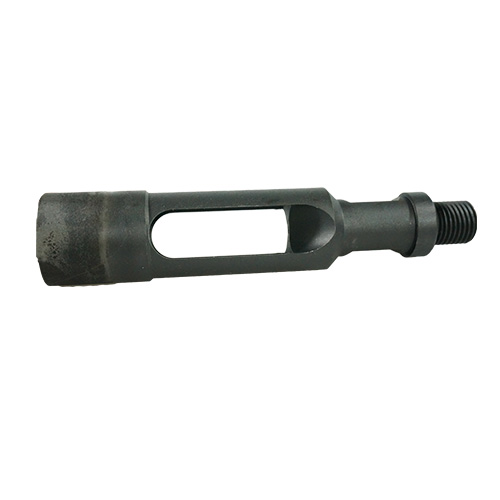

Wireline slickline gauge cutter is a wireline tool designed to gauge and scrape clean the wall of the tubing. The gauge cutter O.D. should be selected very close to the I.D. of the tubing in which it is run. It should be used prior to running or pulling a subsurface control. This assures the operator that the tubing is clear down to the point to which a sub surface device has to be run. It can also be used as a paraffin or wax cutter.
Technical Specifications
Tools O.D. | Fishing Neck | Connection |
1.25"-1.5" | 1.187" | 15/16-10UN |
1.5"-2" | 1.375" | 15/16-10UN |
2"-2.5" | 1.375" | 15/16-10UN |
2.5"-3" | 1.75" | 1-1/16-10UN |
3"-4" | 1.75" | 1-1/16-10UN |
4"-5" | 2.313" | 1-9/16-10UN |
*Other sizes are available upon request.
