Tubular Jar

Wireline Slickline tubular jar is designed to act like a sliding hammer, utilizing the weight of the stem located immediately above, to convey powerful jarring impacts. Upward and downward impacts (jarring actions) are achieved by controlling the direction and speed of the wireline at surface.Techni
Products Inquiry

PRODUCT INFORMATION

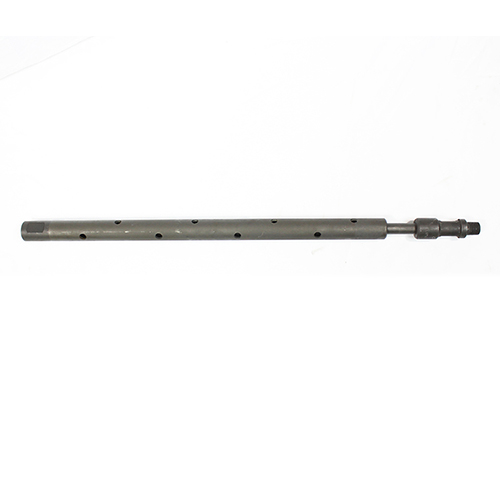

Wireline Slickline tubular jar is designed to act like a sliding hammer, utilizing the weight of the stem located immediately above, to convey powerful jarring impacts. Upward and downward impacts (jarring actions) are achieved by controlling the direction and speed of the wireline at surface.


Technical Specifications

Size

Fishing Neck

Connection

Stroke

1.25"

1.187"

15/16-10UN

20"

1.25"

1.187"

15/16-10UN

24"

1.5"

1.375"

15/16-10UN

20"

1.5"

1.375"

15/16-10UN

24"

1.5"

1.375"

15/16-10UN

30"

1.75"

1.375"

15/16-10UN

20"

1.75"

1.375"

15/16-10UN

24"

1.75"

1.375"

15/16-10UN

30"

1.875"

1.75"

1- 1/16- 10UN

20"

1.875"

1.75"

1-1/16-10UN

24"

1.875"

1.75"

1-1/16-10UN

30"

2.125"

1.75"

1-1/16-10UN

20"

2.125"

1.75"

1-1/16-10UN

24"

2.125"

1.75"

1-1/16-10UN

30"

2.5"

2.313"

1-9/16-10UN

20"

2.5"

2.313"

1-9/16-10UN

24"

2.5"

2.313"

1-9/16-10UN

30"

 *Other sizes are available upon request.
